Stairs metal CORA model Madi extra 04 L-90 13 elements
Stairs modular CORA model Madi Extra 04 L-90 13 pieces / 14 levels
Modular stairs in a set consisting of 13 elements forming 14 levels of stairs. The set contains elements made of solid wood with a choice of colors and steel with a satin steel, matte finish. The set is adapted for self-assembly by the customer, but you can also buy a professional assembly performed by the manufacturer throughout the country.
This model originally features the L-90 procedure, i.e. torsional, running both left and right. If a simple procedure is necessary, it can be ordered after adding information to the form. Stairs can be installed in one of 24 systems presented by the manufacturer.
Free-standing stairs must have a support column, and for the safety of users - also a double-sided railing. If the manufacturer's recommended installation is used, the stairs should be led partly against the wall, 5 cm from it, and supported by metal anchors. If the wall is too weak for anchoring, a support pole should be installed.
Description, parameters, application
Application: internal stairs (inside the building)
Load carrying capacity: maximum load per 160 kg on the step
Weight: set of stairs / set of 13 elements 170 kg
Type: single-beam stairs (modular)
Type of use: modular stairs, universal setting and application, straight, left-handed, right-handed
Room type: for small, medium and large rooms
Construction type: modular metal 160
Wood finish: in the price of stairs (photo on the beech / natural beech varnish) or stained in the selected color from the color palette of wood

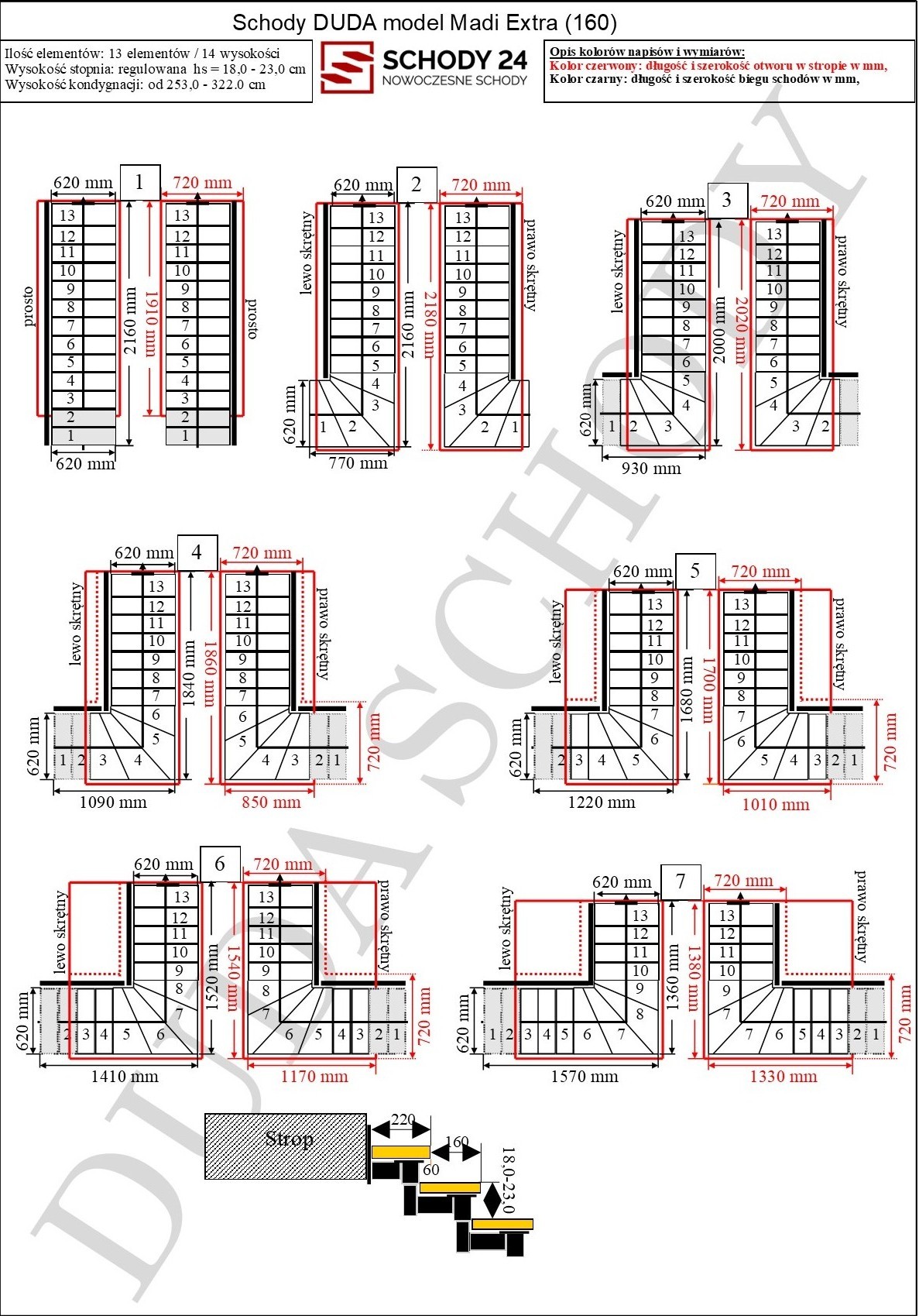

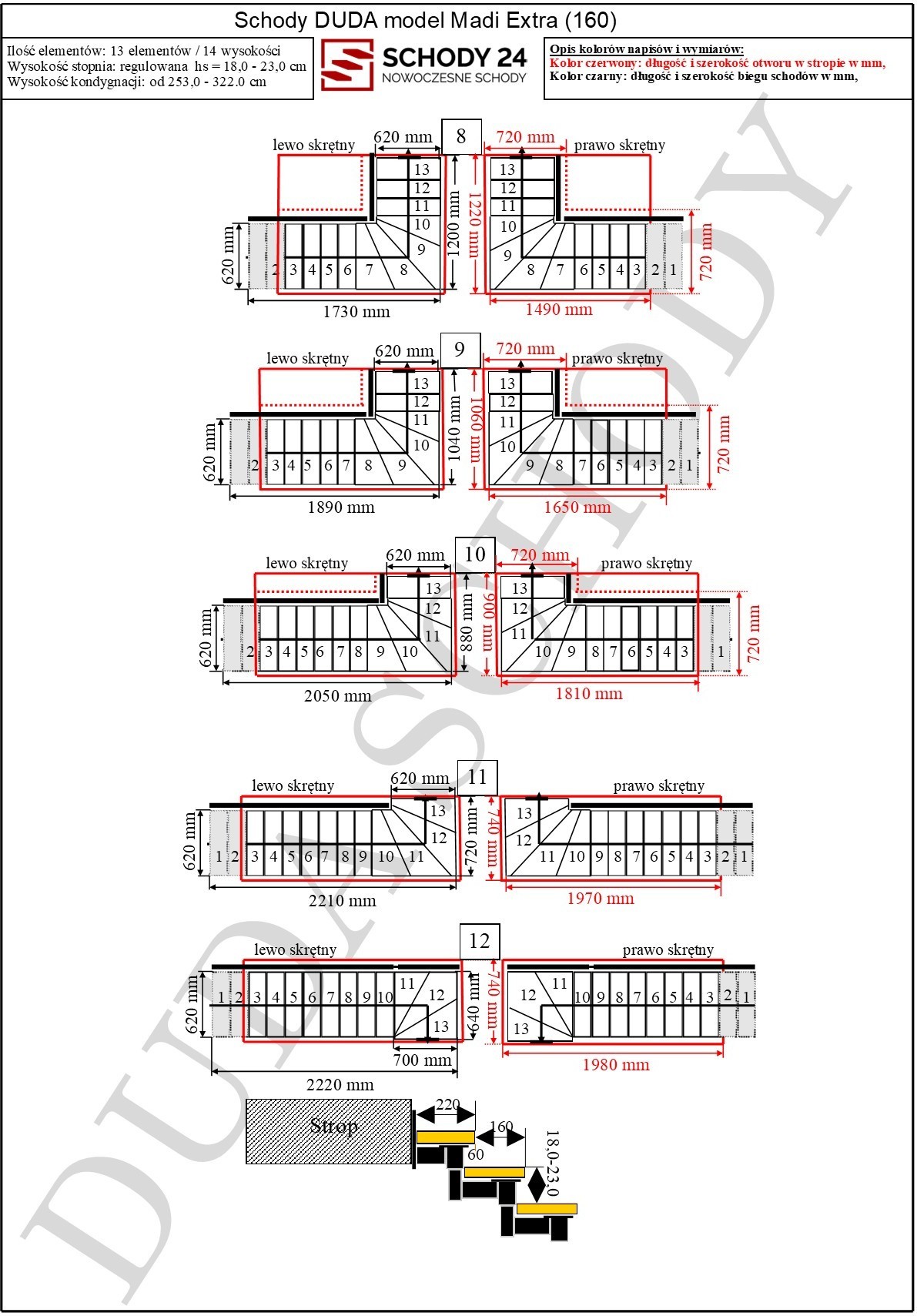

Configuration, systems: possible to use stairs L-90, P in 24 systems
Individual customer warranty: For a 12 month varnish. For the whole set. stairs 24 months
Type of railings: Fill balusters vertical (metal) 25 mm
Manufacturer: Polish manufacturer of modular stairs, metal system CORA
Height: 252 / 322 cm,
Number of elements: 13 pieces / 14 in levels
Step height: adjustable 18,0 / 23,0 cm,
Simple step size: 220 (160+60) mm,
Thickness step: 40 mm
Hole in the roof of a minimum 720 x 2020 mm,
Metal color: steel satin
width of the stairs:
- treatment P: 620 mm (when you buy should be given the run of stairs should be simple)
- treatment: L-90: 620 / 620 mm
Type of wood: Solid beech,
Wood color: pictorial picture of stairs (na beech / natural beech varnish).
In the price of the stairs you can choose other colors to choose from the wood color palette
Modular construction: metal 160
- balusters vertical (metal) 25 mm
- fixed on the side step
- after 2 pieces per step
- handrail wood 50 mm
Examples of heights, sizes
From floor to floor 198 - 253 cm - 10 step / 11 high (- 3 step)
From floor to floor 218 - 276 cm - 11 step / 12 high (- 2 step)
From floor to floor 234 - 299 cm - 12 step / 13 high (- 1 step)
From floor to floor 252 - 322 cm - 13 step / 14 high (Standard)
From floor to floor 270 - 345 cm - 14 step / 15 high (+ 1 step)
From floor to floor 288 - 368 cm - 15 step / 16 high (+ 2 step)
Important information for safe use and application of the stairs
Steps should be partly run by the wall. They can not be removed from the wall more than 5 cm. This is a safety-related use of stairs.
It is necessary to apply anchors to the wall. If the location of the stairs, as a free-standing, it is applicable, the support column, and the railing on both sides of the stairs.
Stairs to the unusual dimension to the arrangements
Unless you can adjust the configuration by following these steps, stairs will do custom patterns to fit.
We can make a project based on the valuation of the stairs:
- Sent projections to the actual cross-sectional dimensions of the building,
- Or the execution of a sketch of the actual size and send E-mail: email@example.com
We will prepare a special offer in our online store in the category: on request.
Completion date of purchase of the stairs
Supplied without mounting the stairs - 1 / 3 weeks,
Supplied with mounting the stairs - 4 / 6 weeks,
CONTACT - technical advice in the hours 9,00 - 20,00 hrs.
Tel / Mobile: +48 506 034 222, Tel / fax: 0048 65 / 517 82 29, E-mail: firstname.lastname@example.org
Salon and exhibition (Poland) ul. Gostyńska 61, 64-000 Kościan
Downloadable technical files / Downloads
|Load per step||model 160 - 160 kg|
|Weight model Madi Extra 160 L-90||13 elements - 170 kg|
|Hole in the ceiling Madi Extra L-90||13 elements - Hole 720x2020 mm|
