Stairs CORA model Mix plus 04 U-180 13 elements

Availability: Dostępny
Dispatched within: 14-21 dni
Delivery: The price does not include any possible payment costs check the delivery methods
Price: 10 510,00 zł 10510.00
quantity kpl.

product unavailable

add to wish list
Rating: 5
Vendor: DudaSchody
Product code: 21990466

Description

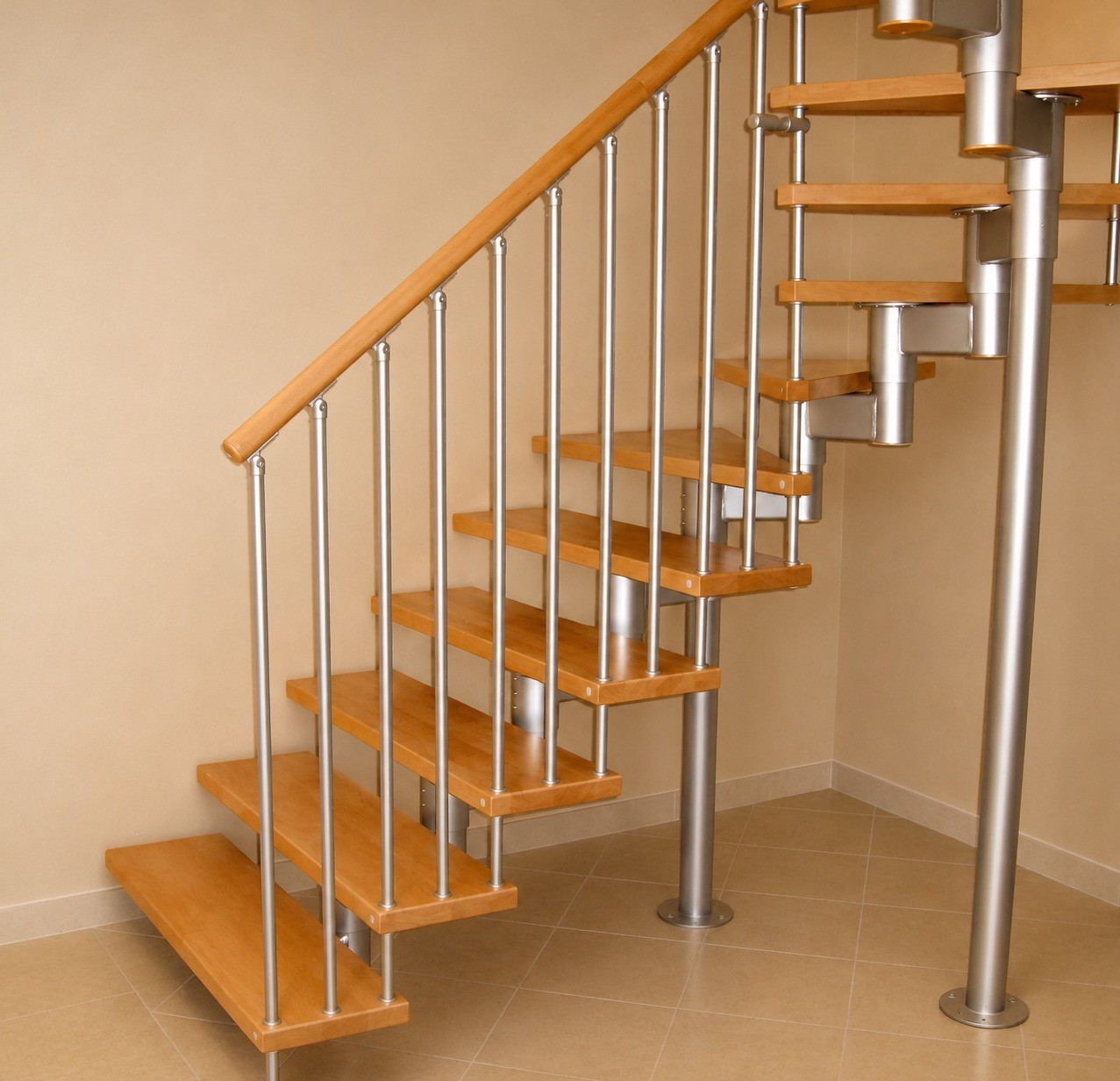

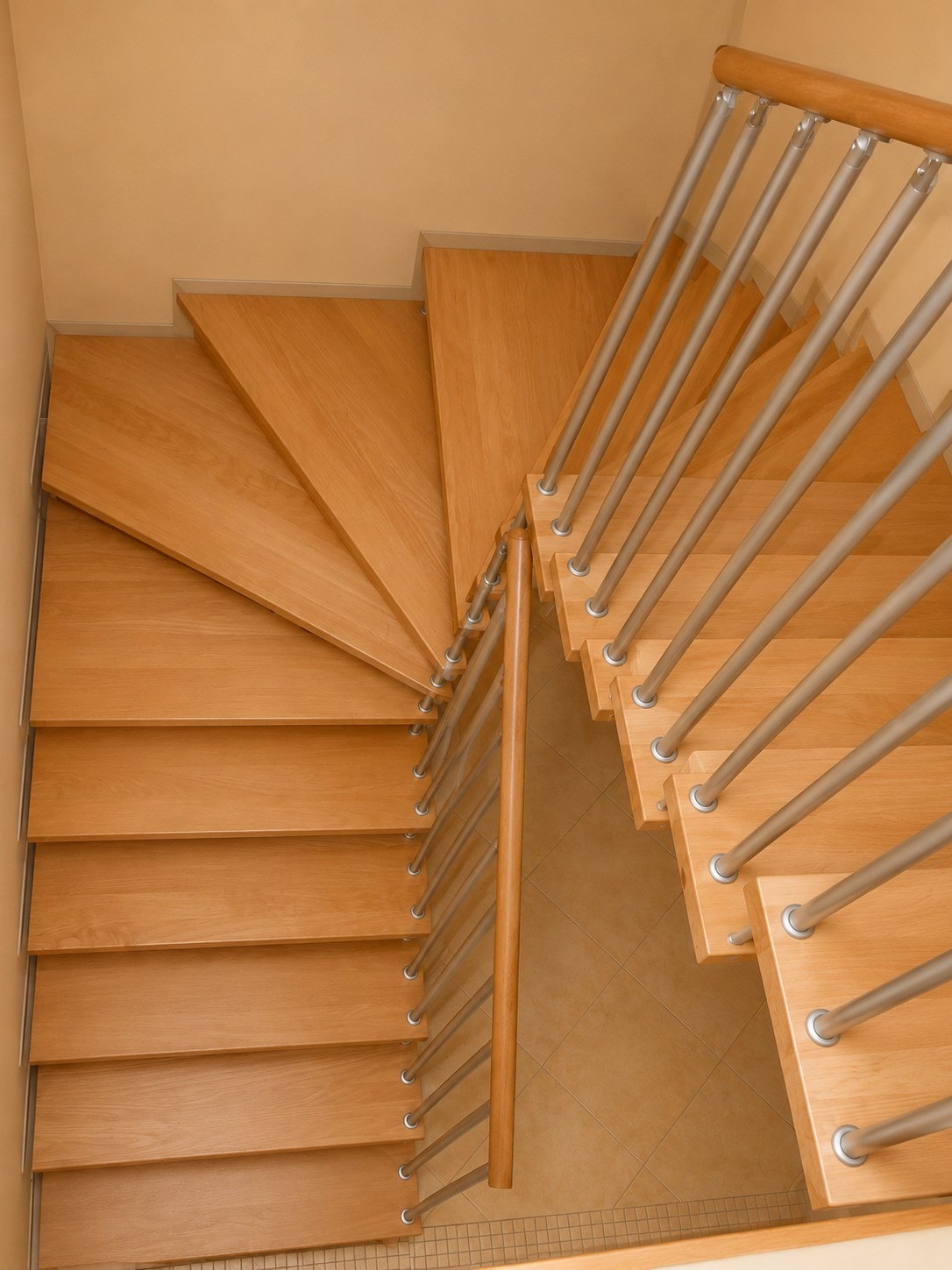

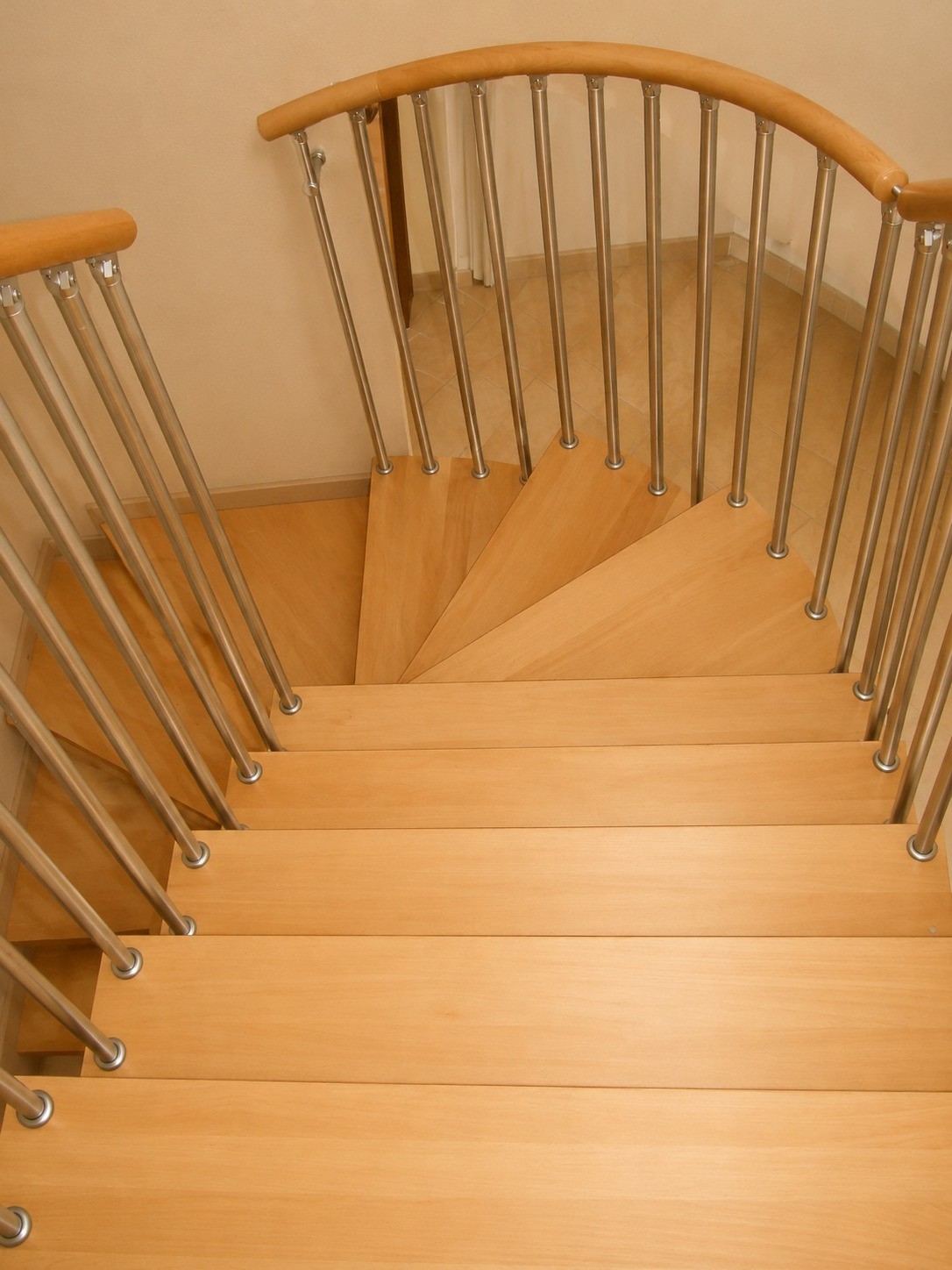

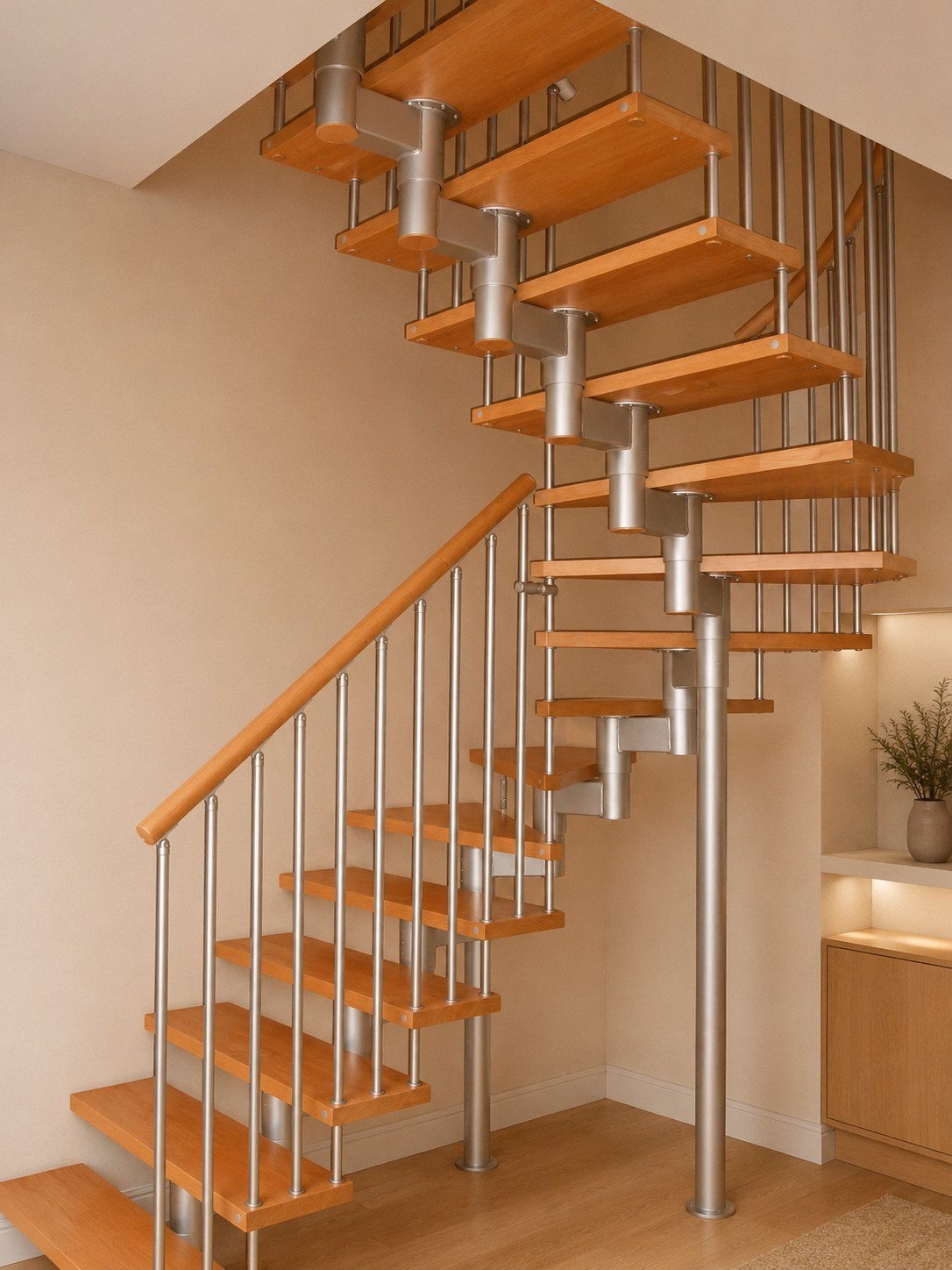

Stairs modular CORA model Mix plus 04 U-180 13 elements

Mix Plus 04 stairs are stairs for self-assembly.

The set includes 13 elements of stairs, folded into 14 levels. The elements are made of solid wood (the color can be selected from the manufacturer's color palette) and powder coated steel in satin steel. After ordering the service for an additional fee, professional installation in the country is carried out by the manufacturer.

Modular stairs as a modern application in construction, replace traditional
wooden modern stairs.

The Maxima stair tread has a maximum load of 200 kg when properly fastened to the wall.

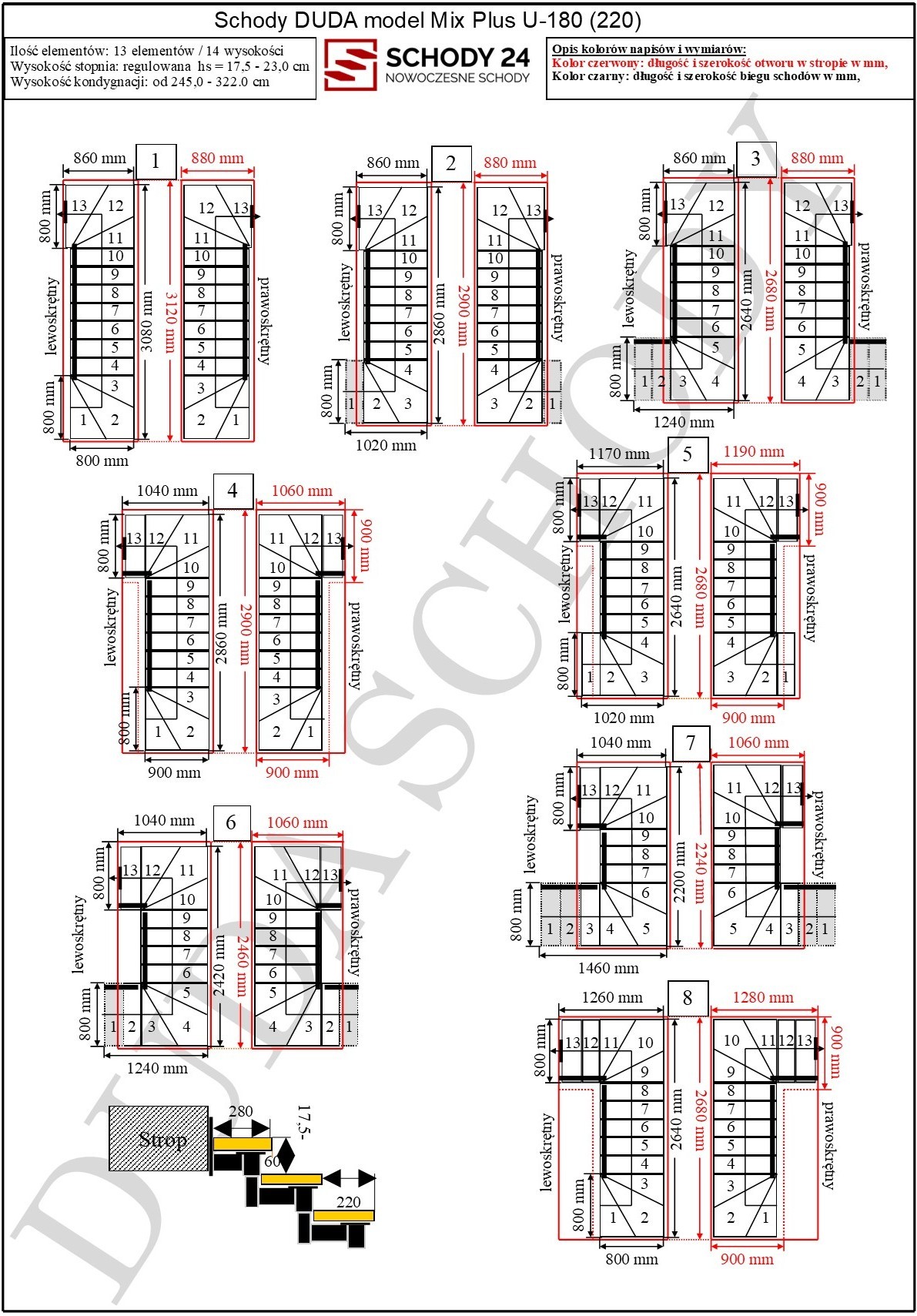

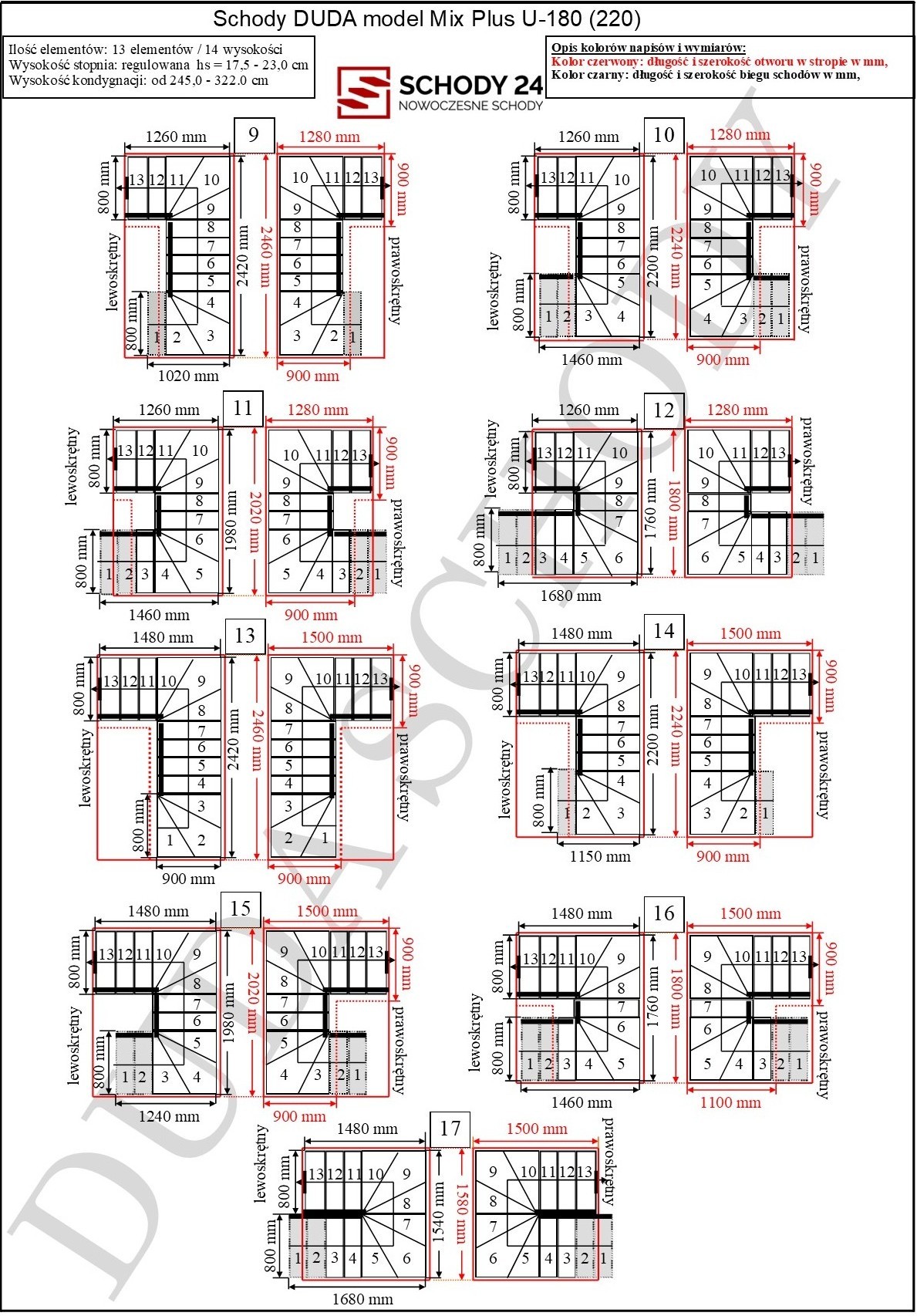

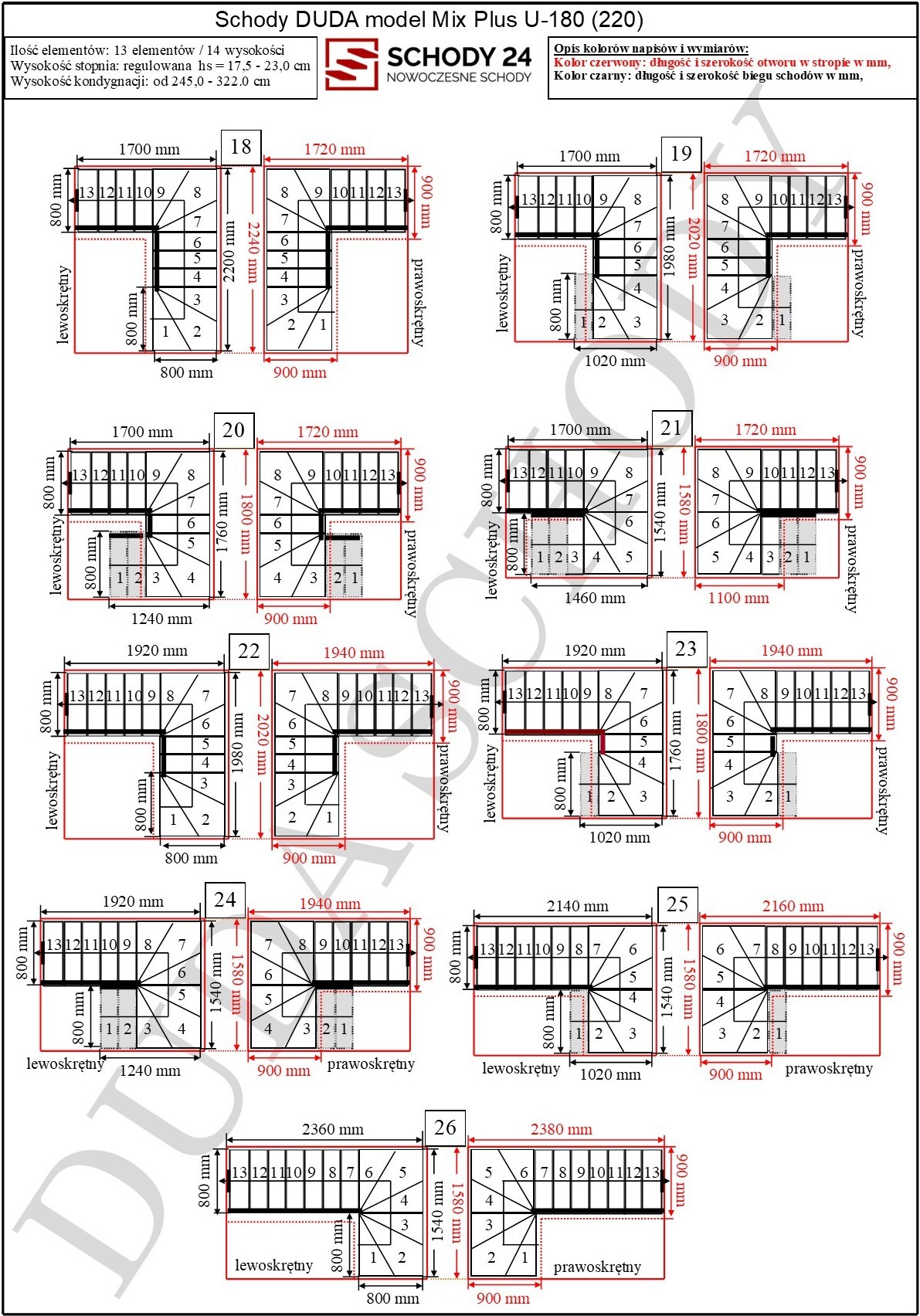

Mix Plus 04 stairs can be mounted in one of 44 configurations, fully presented by the manufacturer. This model has an original U-180 treatment, both right and left. It is possible to order a simple treatment after adding an annotation to the order form.

It is recommended to install the stairs next to the wall, up to 5 cm from it, which allows the installation of anchors. If the wall does not withstand the anchoring, the support column must be installed alternately. For free-standing stairs, it is planned to use a support pole, as well as railings securing on both sides, additional options on request.


Description: parameters, application
Application: interior stairs (inside the building)
Load capacity: maximum load per degree 200 kg
Weight: A set of stairs / a set of 13 elements 220 kg
Type: single-beam stairs (modular)
Type of application: modular stairs, universal positioning and use, straight, left-handed, right-handed
Type of rooms: for small, medium and large rooms
Type of construction: modular metal 220
Configuration, layouts: possible use of stairs in U-180/52 layouts
Railing type: 22 mm vertical balusters
Producer: Polish producer of modular metal stairs CORA system

Examples of heights, sizes
Floor to floor 193 - 253 cm - 10 steps / 11 high (- 3 steps)
Floor to floor 210 - 276 cm - 11 steps / 12 high (- 2 steps)
Floor to floor 228 - 299 cm - 12 steps / 13 highs (- 1 step)
Floor to floor 245 - 322 cm - 13 steps / 14 high (Standard)
Floor to floor 263 - 345 cm - 14 steps / 15 high (+ 1 step)
Floor to floor 280 - 368 cm - 15 steps / 16 high (+ 2 steps)

Technical description
Storey height: from 245 to 322 cm
Pieces Quantity: 13pcs steps / 14 levels (top step below top floor)
Step height: adjustable from 17.5 / 23.0 cm
The size of the step: 280 (220 + 60) mm
The thickness of the step: 40 mm


Opening in the ceiling: minimum 1500 x 1580 mm,


The width of the stairs:
- U-180 torsion treatment: 800/800/800 mm
Type of construction: modular metal 220
Metal color: steel satin
Wood finish (color): Illustrative image (on beech, clear varnish) or other colors from the wood color palette
One-sided railing: in a typical set, one-sided railing from the first to the upper step
Railing description:
- vertical balusters (metal) 22 mm,
- embedded in the foot, 3 pcs per step,
- 50 mm wood handrail,

Additional information

Unusual stairs to size to be agreed
If it is not possible to adjust the stairs according to the diagrams below, we will make unusual stairs to size.
We will make a design, stair valuation based on:
- sent views of the building cross-section with actual dimensions,
- making a sketch with real dimensions,
- taking illustrative photos of the ground floor and the first floor.
Sending information by  e-mail: schody24.biuro@wp.pl
We will prepare a special offer in our online store, in the category: On request.

Time limit for completion:
- delivery without assembly 2 / 3 weeks,
- delivery with assembly 4 / 6 weeks,

CONTACT - technical advice: 9.00 - 19.00 hours
Tel / mobile: +48 506 034 222 Tel / fax: (0048) 65 / 517 82 29,  e-mail: schody24.biuro@wp.pl

Salon and exhibition (Poland) ul. Gostyńska 61, 64-000 Kościan
